Machine 5V UV Electronic 0

Basic Info.

Model NO.	GF240-1H-DM
Modulation System	No
In-Out	Lifting Pressure Type
Power Supply Voltage	AC85-265
Pack Sealing Size	21011050
Brand	Gofern
Transport Package	Carton Package
Specification	Metal Case
Trademark	GOFERN
Origin	Shenzhen
HS Code	8504401400
Production Capacity	100000pieces/Month

Product Description

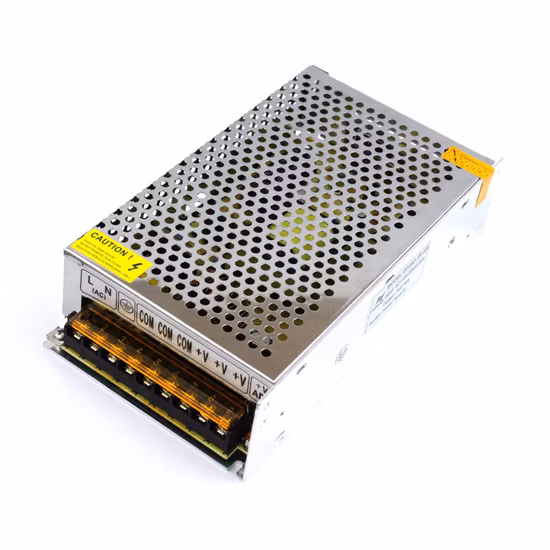

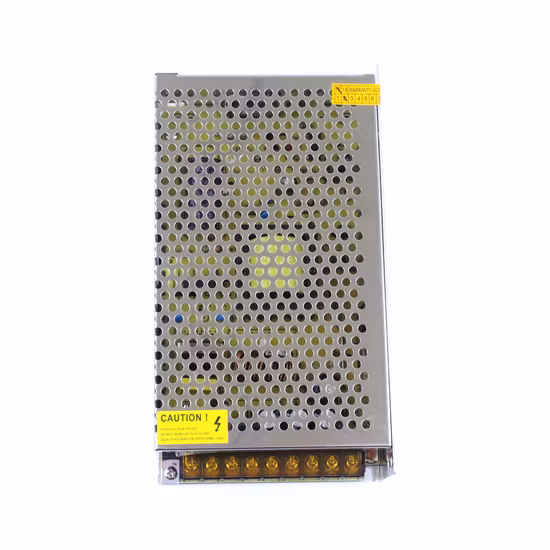

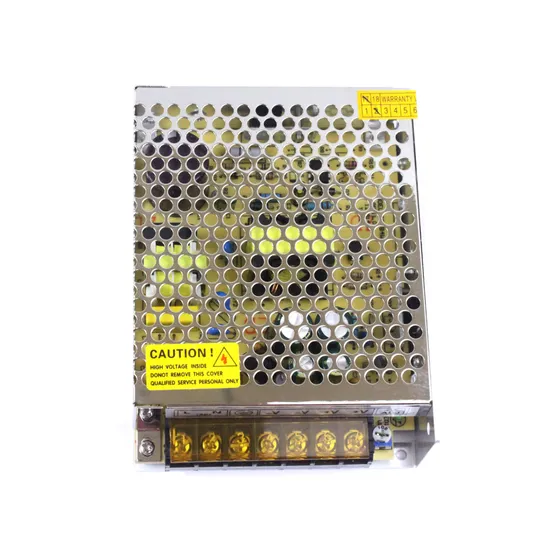

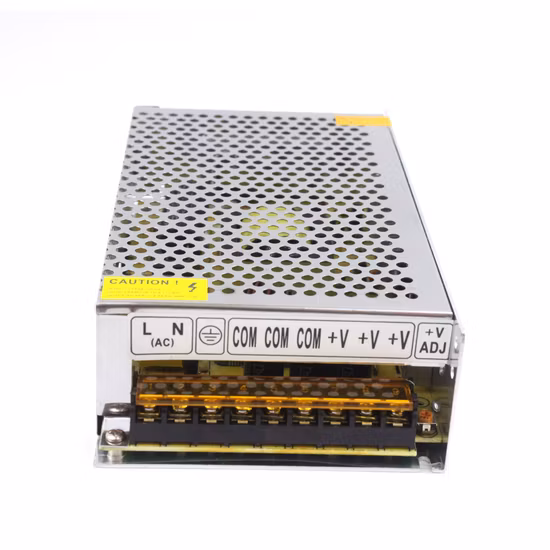

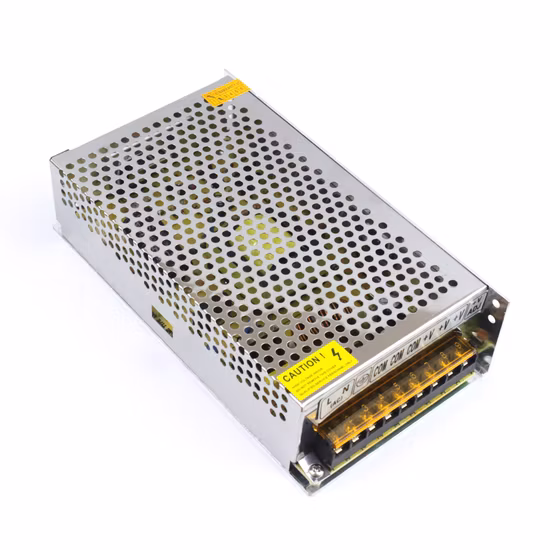

Machine 5v Uv Electronic 0-10v Dimmable Ac Dual Output 24v 12v Dc Cable Inverter Dvd Board Astec Ac-dc Power Supply 240W 20A

Machine 5V UV Electronic 0-10V Dimmable AC Dual Output 24V DC Cable Inverter DVD Board Astec 12V AC-DC Power Supply 20A 240W

Features:
1.Low power consumption, high reliability
2.Protections: Short circuit/Over load/Over voltage
3.Cooling by free air convection
4.100% full loading burn-in test
5. 2 years warranty
6.AC110/220V input

MODEL		GF200-1G-AM	GF240-1H-AM	GF240-1K-AM	GF240-1B-AM	GF240-1L-AM	GF240-1C-AM
OUTPUT	DC VOLTAGE	5V	12V	15V	24V	36V	48V
	OUTPUT POWER	200W	240W	240W	240W	240W	240W
	CURRENT RANGE	40A	20A	16A	10A	6.6A	5A
	RIPPLE & NOISE(max.)	100mVp-p	120mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	88 ~ 132VAC/176 ~ 264VAC selected by jumper or switch
	AC CURRENT(Typ.)	3.15A/115VAC 1.5A/230VAC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	72%	78%	78%	80%	82%	82%
	INRUSH CURRENT(Typ.)	COLD START 20A/115VAC 40A/230VAC
	LEAKAGE CURRENT	<2.0mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated output voltage
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0ºC ~ +45ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20ºC ~ +85ºC 10~95% RH
	TEMP. COEFFICIENT	±0.05%/ºC
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	SAFTY STANDARDS	Refer to CE EN60950-1
	EMC STANDARDS	Refer to EN55022,EN55024,EN61000
OTHERS	DIMENSION	L210W110H50MM
	WEIGHT	20PCS/Carton/14.5KG
	SHELL MATERIAL	Aluminium
